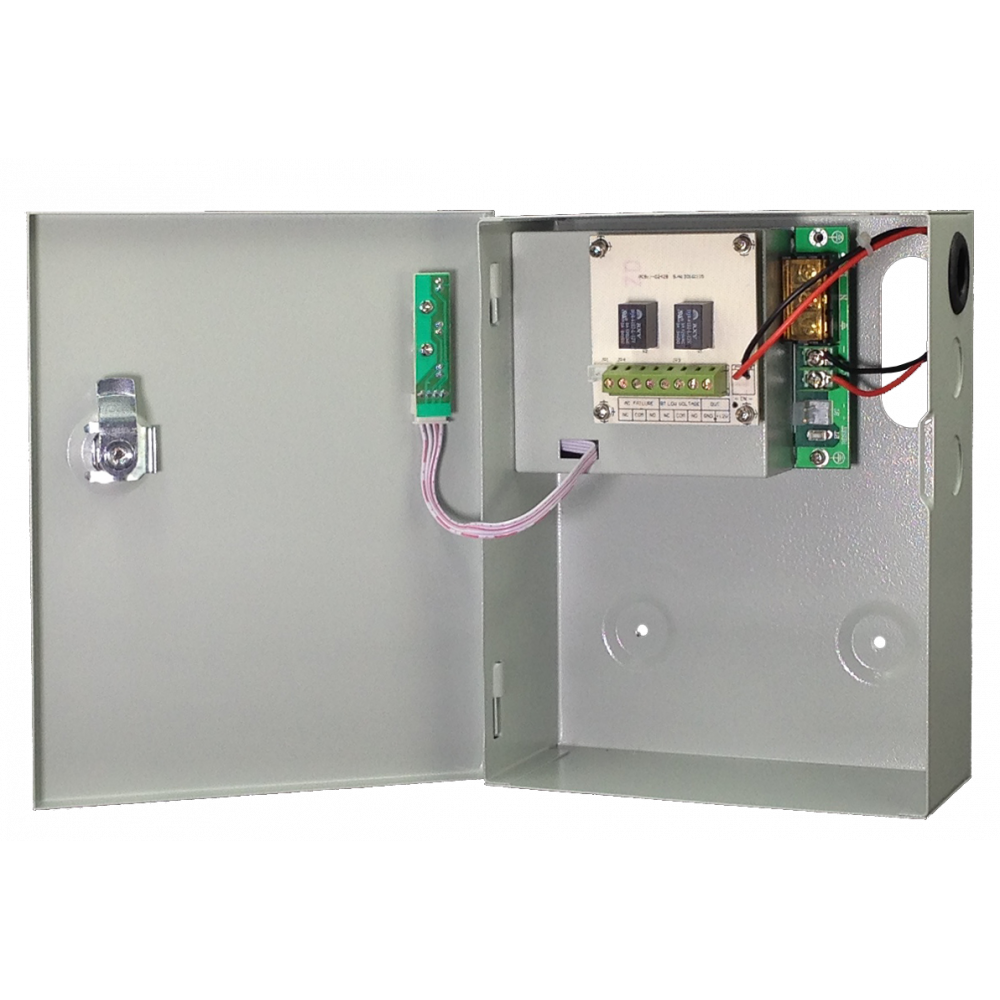

General UPS PowerSupply (12V 3A RelayAlarm)
Model
No.: FPS1203N-01BR
· Uninterruptible
PSU
· Relay Alarm
· Metal Case With
Key-lock
· 85% High
efficiency
· 2 Years
Warranty
· Full Protection
· No delay battery boot up
· 100% full load burn-it test
· Work with different optional modules
FPS 1203N-01BR is an UPS power supply, its main output is 13.6V / 3A, while it also provides maximum 1A charge current. It could be used for CCTV surveillance / access control / fire alarm and other security systems.
|
INPUT |
Voltage Range |
190 - 240VAC |
|
|
Frequency Range |
50 - 60Hz |
||
|
OUTPUT |
Voltage (AC Mode) |
13.6V ±2% |
|
|
Voltage (Battery Mode) |
Same as battery voltage |
||
|
Rated Current |
3A |
||
|
Rated Power (Max.) |
54.4W (with 1A charge current) |
||
|
Efficiency (Typ.) |
>85% |
||
|
Ripple & Noise |
<120mVp-p |
||
|
Output Channel |
1 channel |
||
|
CHARGING |
Voltage |
13.6V ±2% |
|
|
Current |
1A (max.) |
||
|
Constant voltage mode, charge current decreases when battery voltage increases. |
|||
|
PROTECTION |
Input |
2A / 250VAC fuse |
|
|
Overload |
3.9A ±5% |
||
|
Hiccup mode, recovers automatically after fault condition is removed. |
|||
|
Over Voltage |
16V ±5% |
||
|
Hiccup mode, recovers automatically after fault condition is removed. |
|||
|
Battery Low Voltage |
10V ±2% |
||
|
PSU shuts down until AC power recovers. |
|||
|
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
||
|
ENVIRONMENT |
Temperature |
Working: -20 - 50℃ |
Storage: -30 - 80℃ |
|
Humidity |
Working: 20 - 80%RH |
Storage: 10 - 90%RH |
|
|
LED INDICATOR |
Red |
On |
AC power is on |
|
Green |
On |
DC output is on |
|
|
Yellow |
Off |
Battery is fully charged or no battery |
|
|
Flickering |
Battery is charging |
||
|
SAFETY & EMC |
EMC Standards |
EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013 |
|
|
LVD Standards |
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013 |
||
|
METAL BOX & PACKING |
Default Metal Box |
203 x 163 x 74mm, fits for 1 pc 12V 9Ah battery. |
|
|
Optional Metal Box |
265 x 195 x 75mm, fits for 1 pc 12V 10Ah battery. |
||
|
295 x 195 x 90mm, fits for 1 pc 12V 20Ah battery. |
|||
|
Packing |
41 x 35 x 23.5cm / CTN, 11.5kg / CTN, 10pcs / CTN (default metal box) |
||
